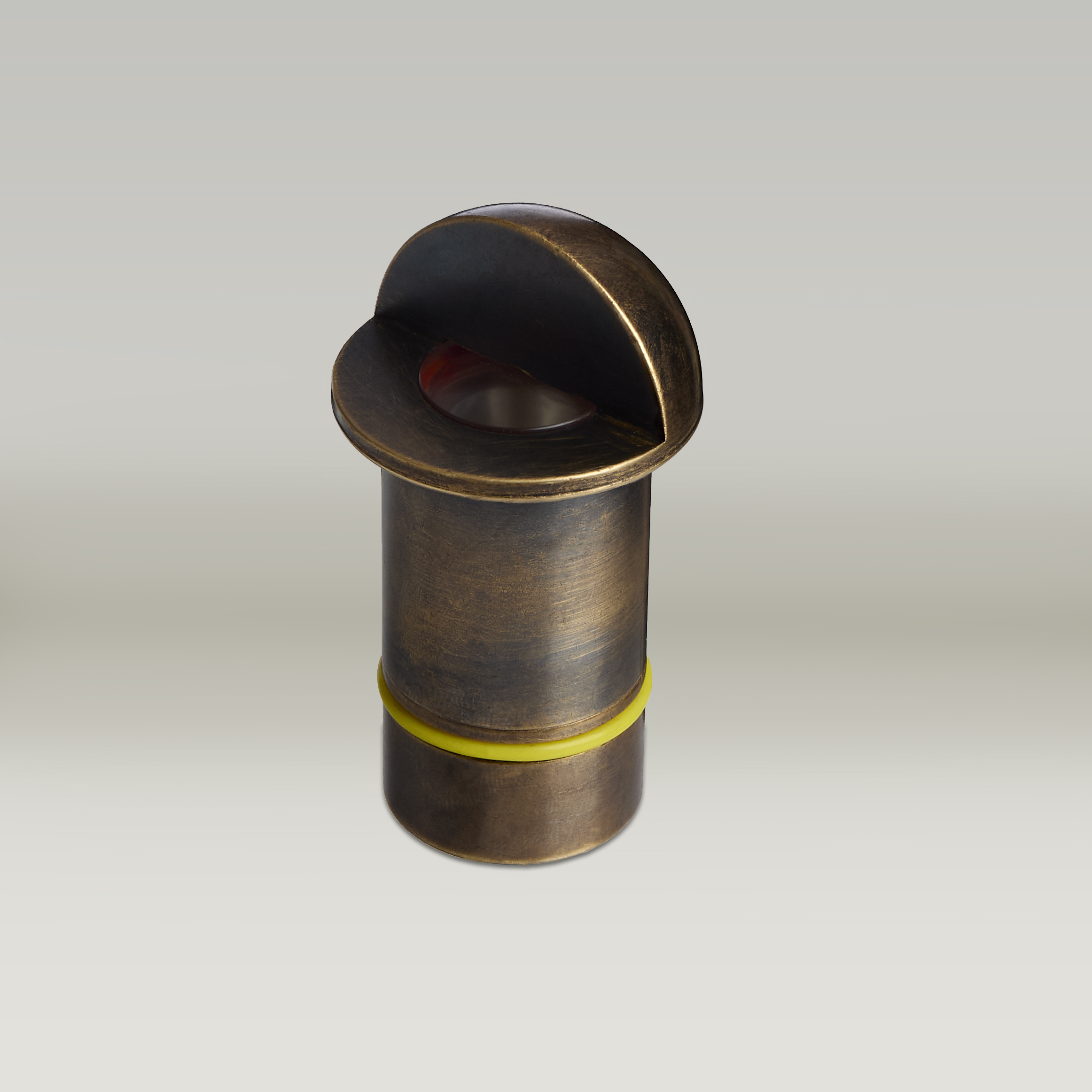

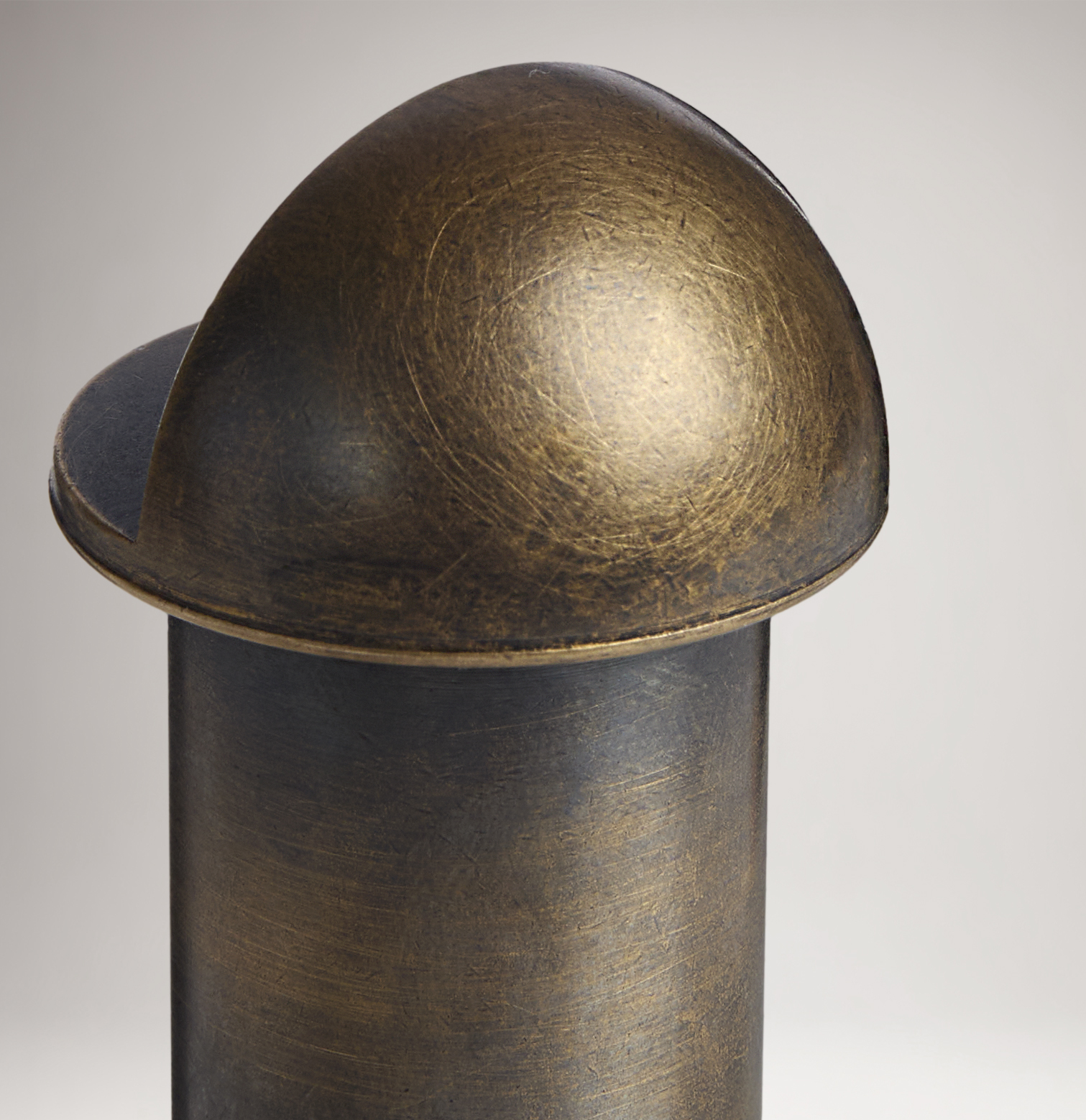

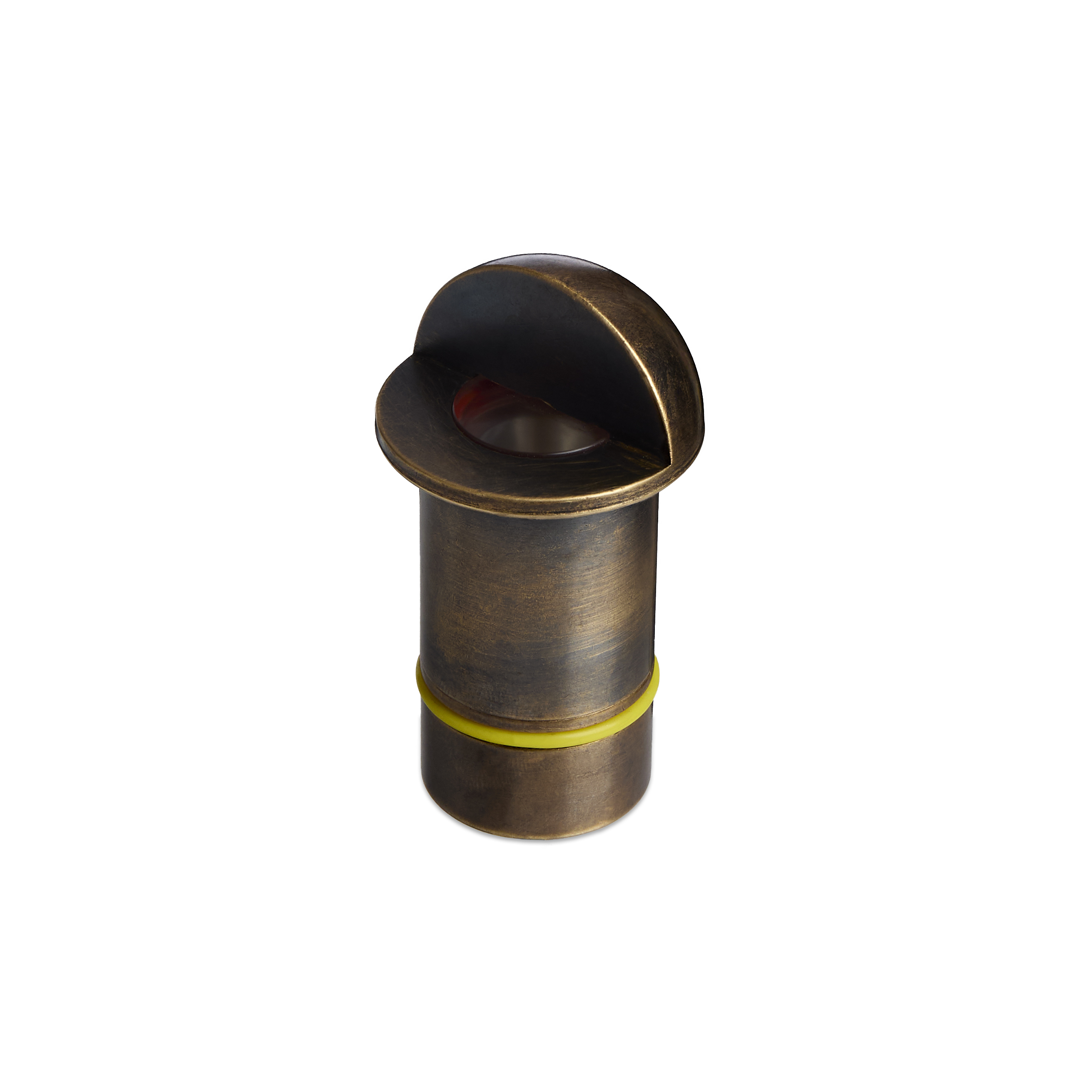

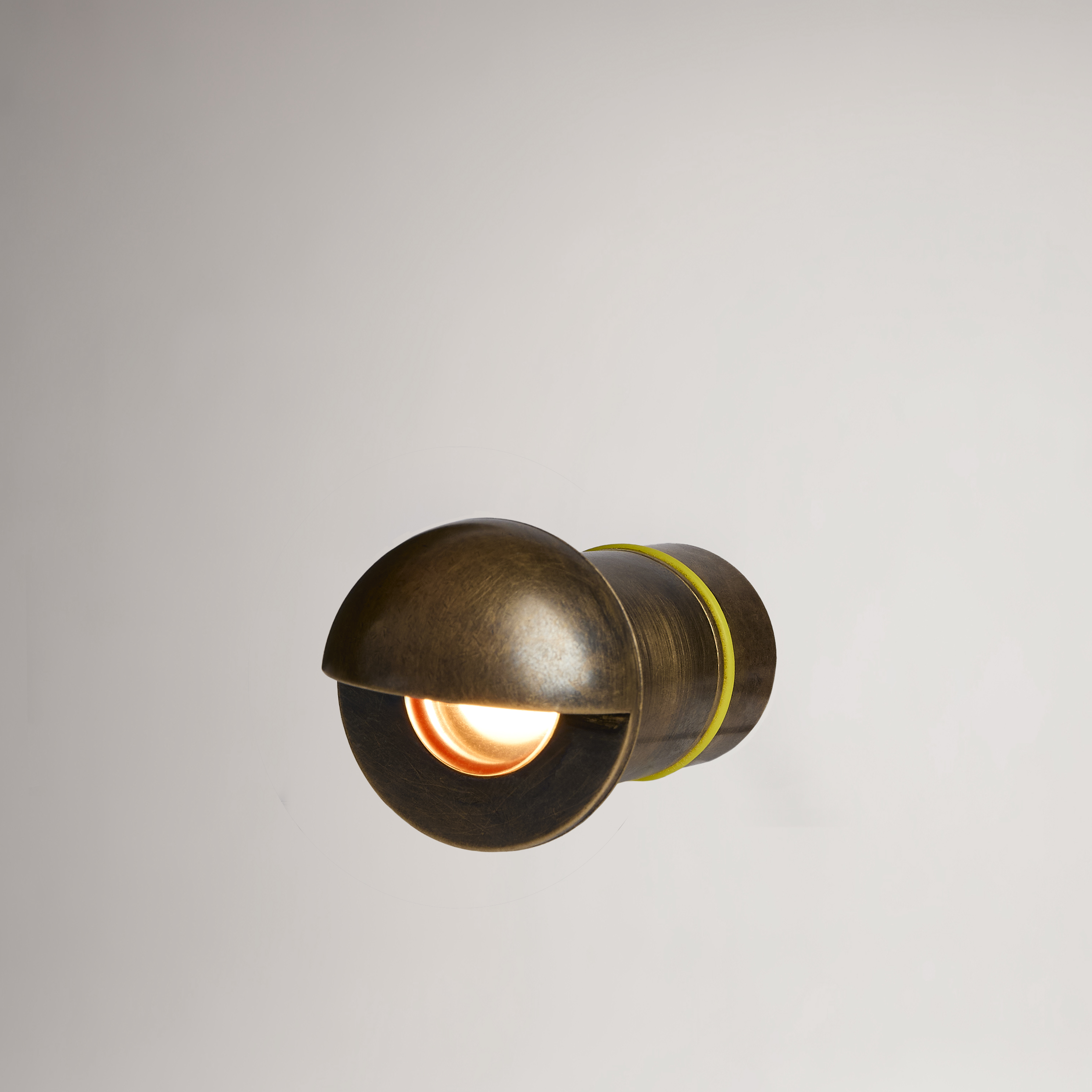

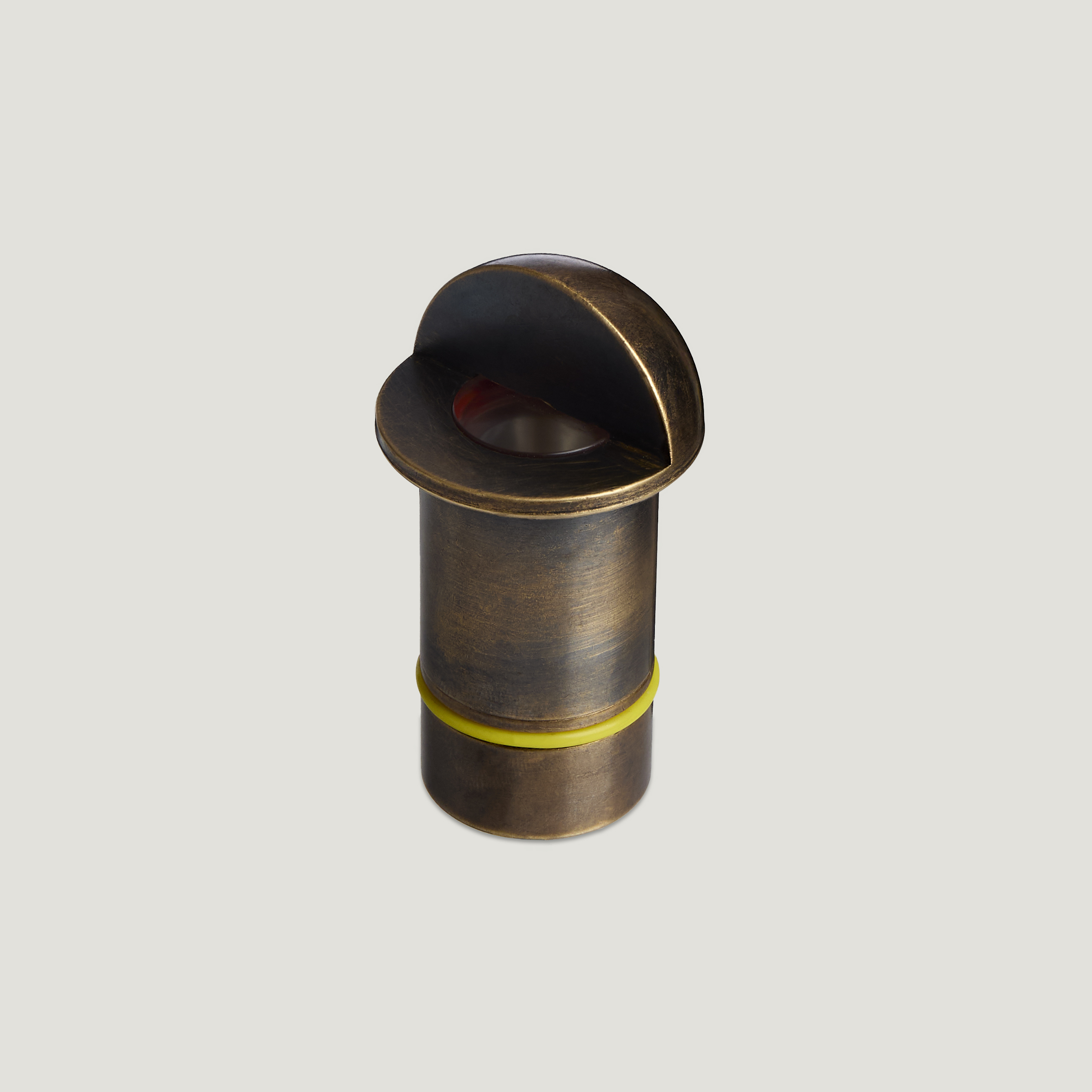

Micro eyelid light

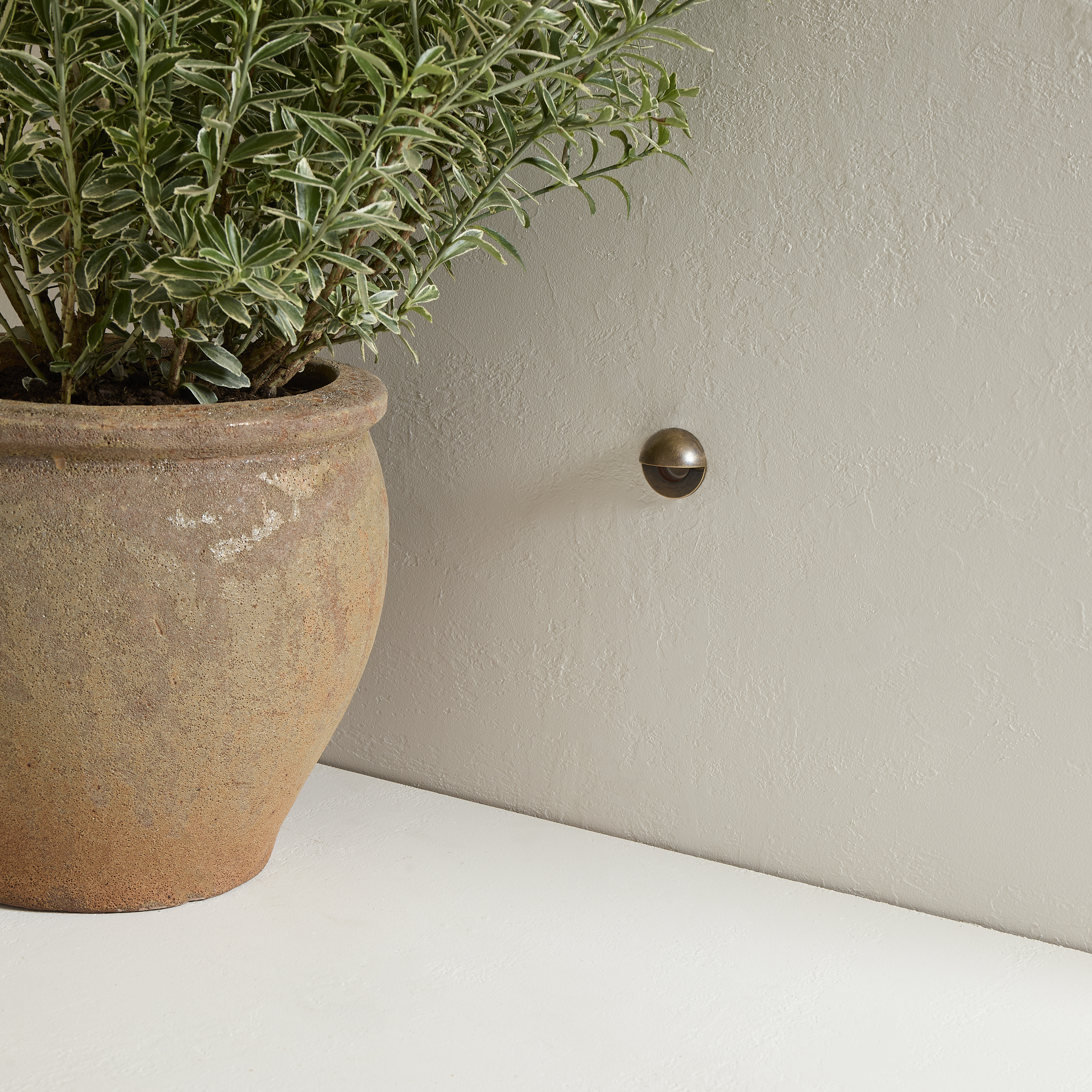

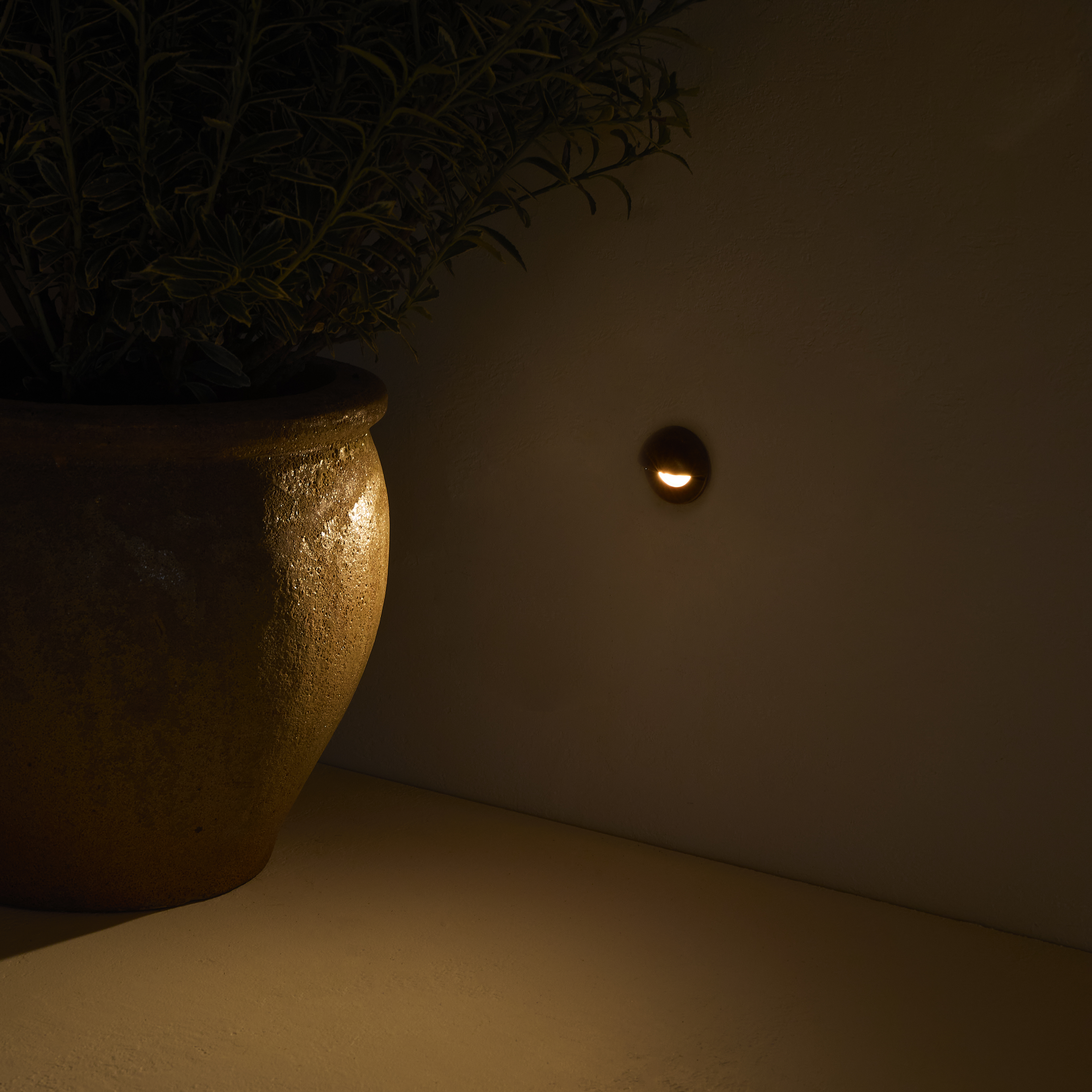

The micro eyelid light is perfect for sitting in the wall to provide lighting for stairways and paths. It's has a very low glare with a beam of illumination from the bottom.
- Water Resistant (IP68)
- Small, but powerful with a user replaceable LED.
- 10 year guarantee.

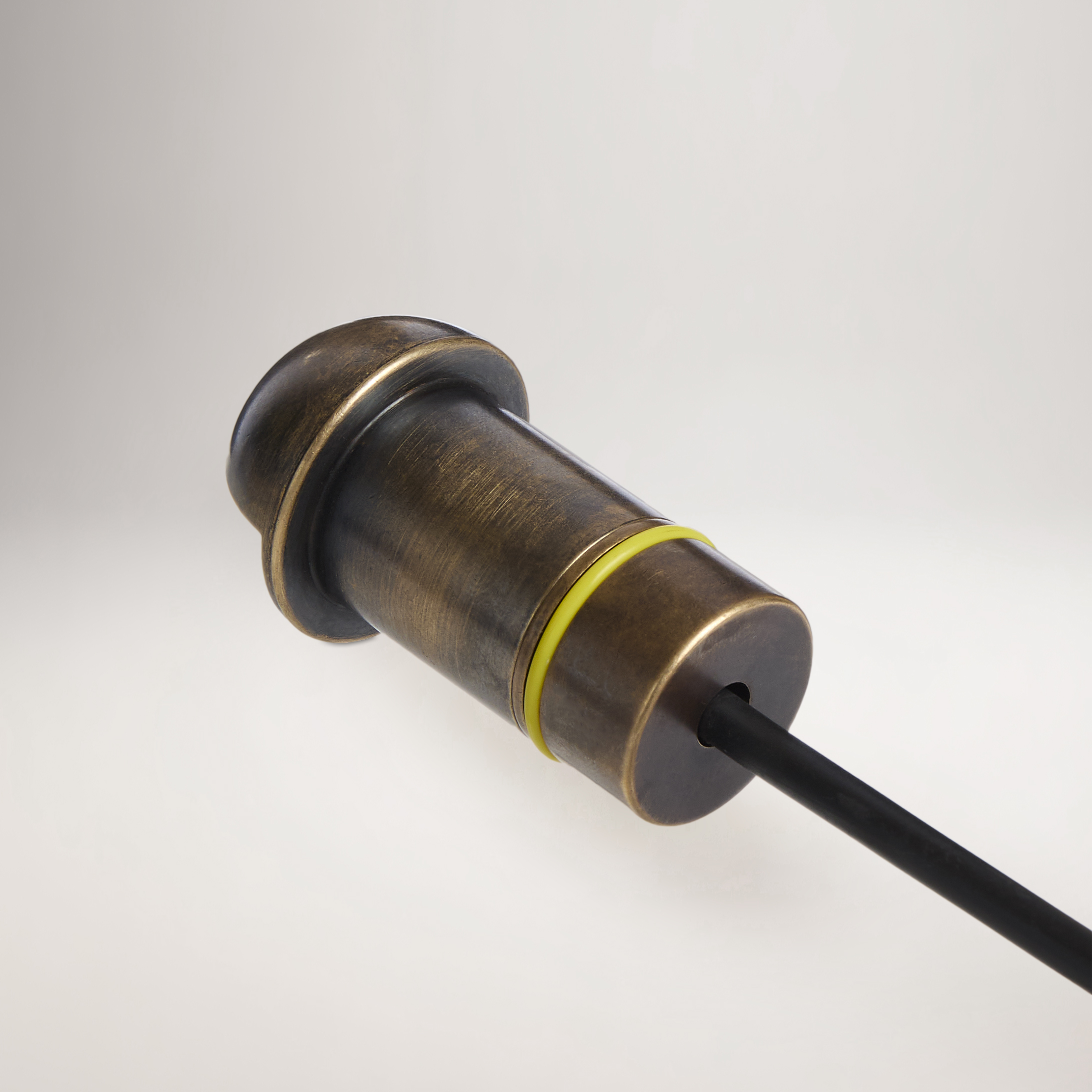

- Pre-flexed with 2 meters of 2 core flex.
- Dimmable.
- Reverse polarity protection which illuminates Red when connected in reverse.
All components of the fitting are replaceable allowing for longevity of the fitting beyond the warranty for years to come.
Must be used with 350mA LED drivers, wired in series only.
42W Max (120VDC)Dark skies and wildlife friendly
This fitting is considered dark skies and wildlife friendly subject to a suitable LED (2700K, 2200K, or 1800K) and ensuring no upward spill.

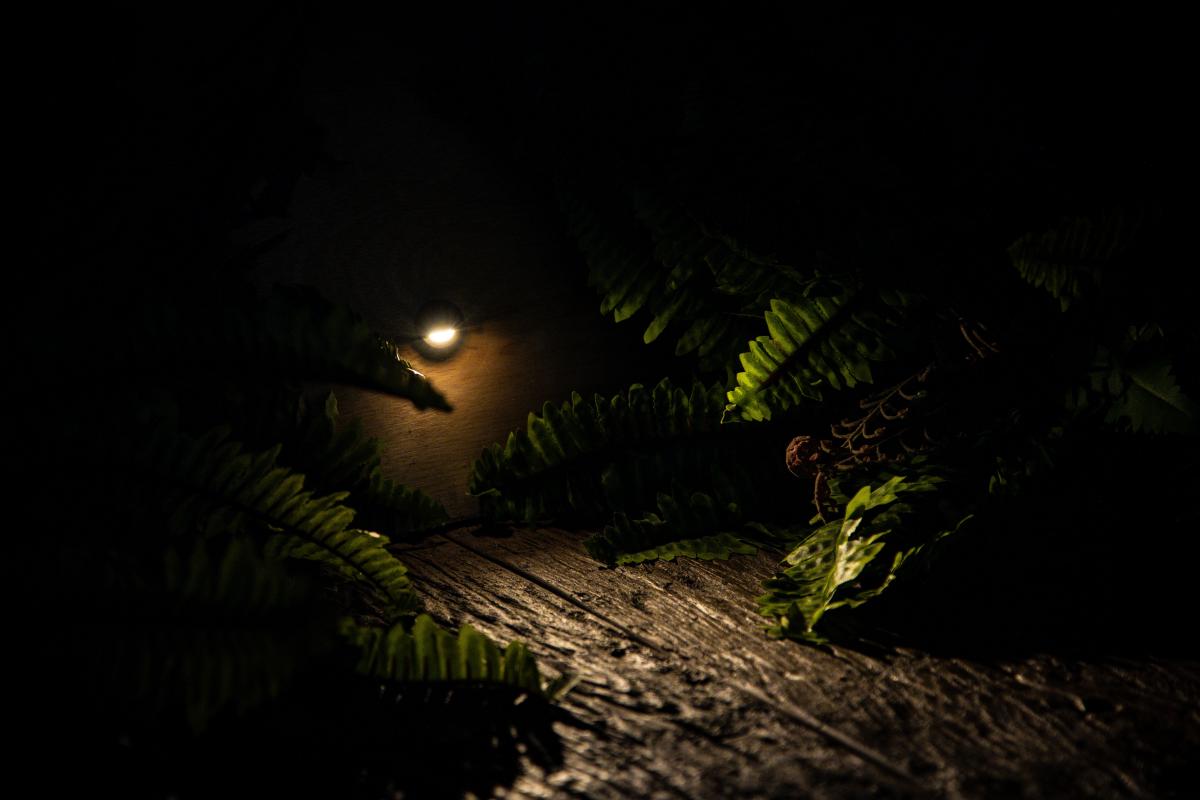

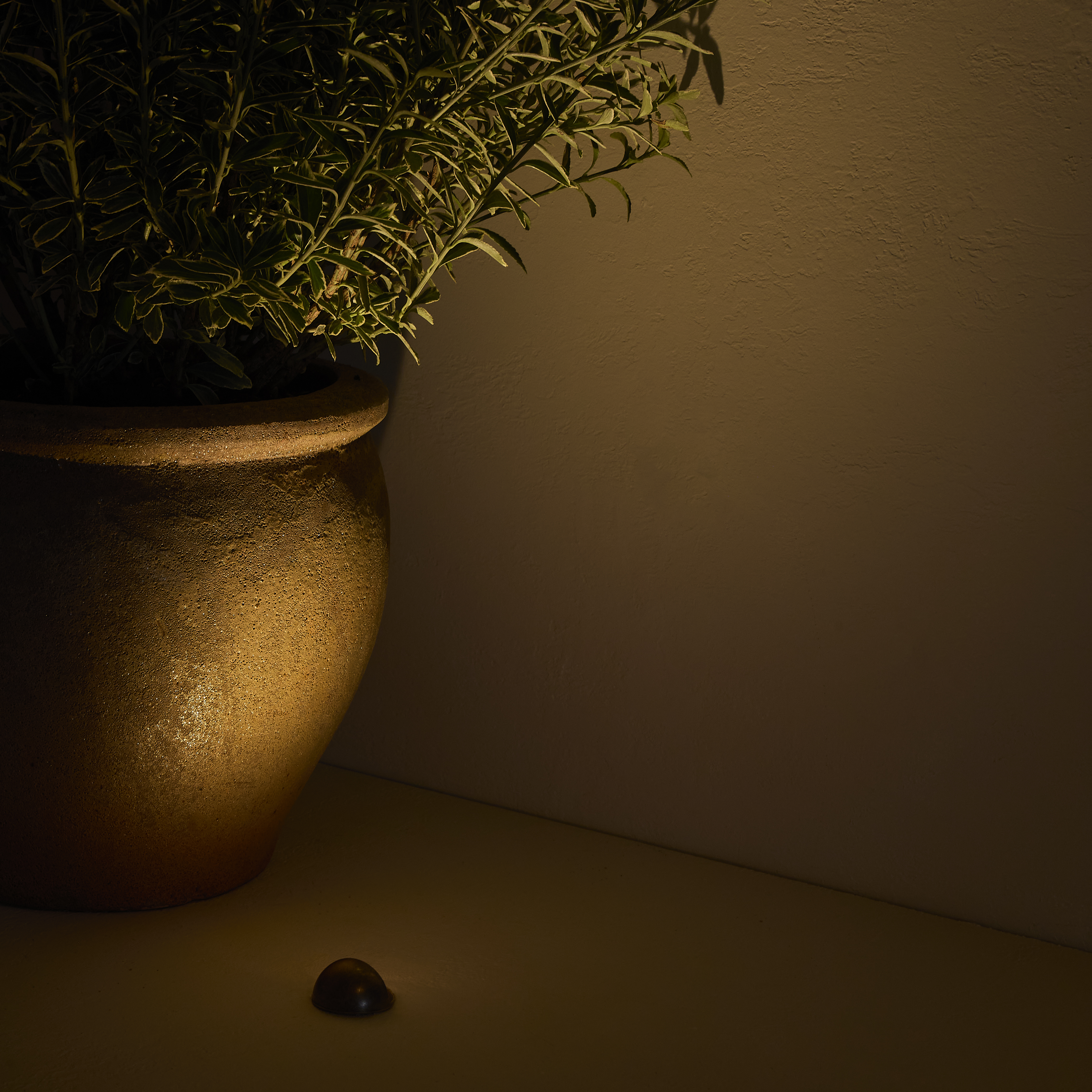

Lighting Effects

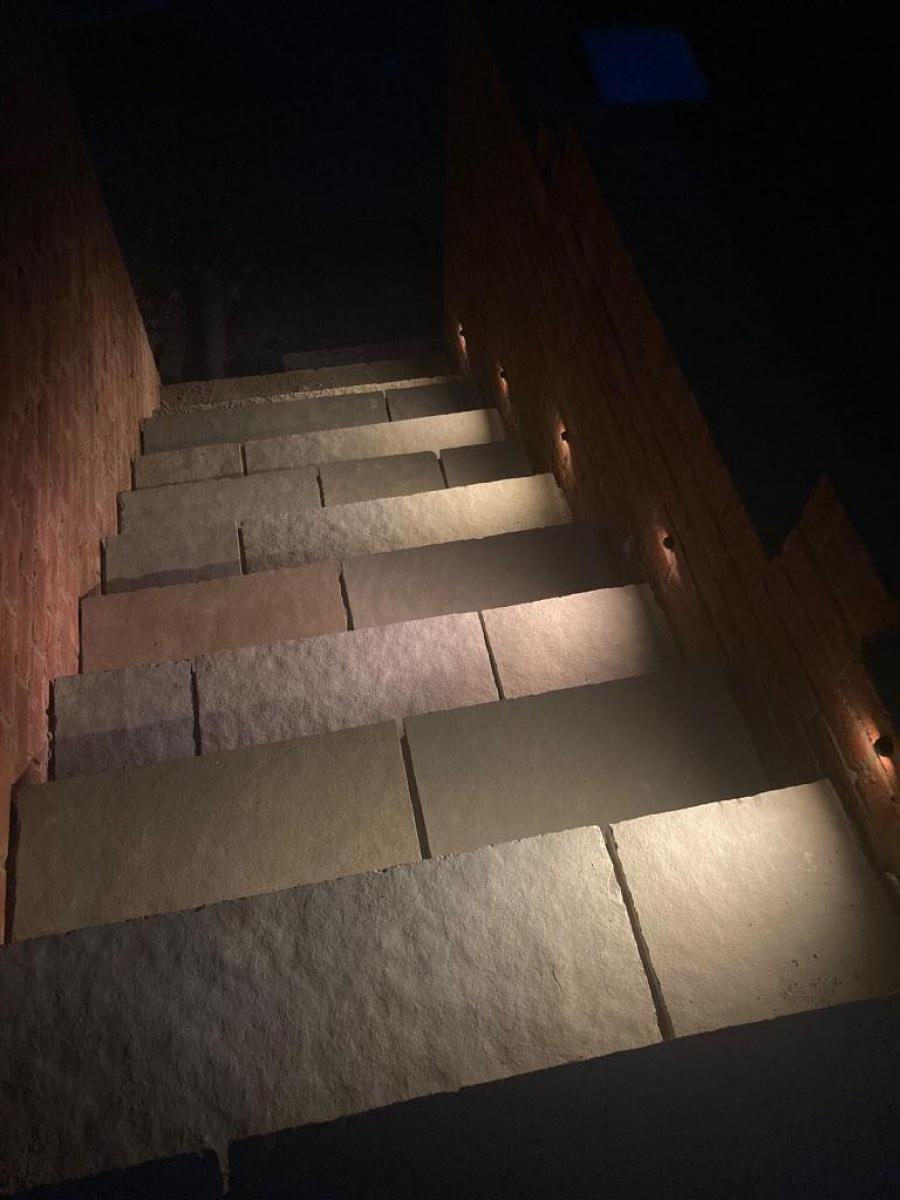

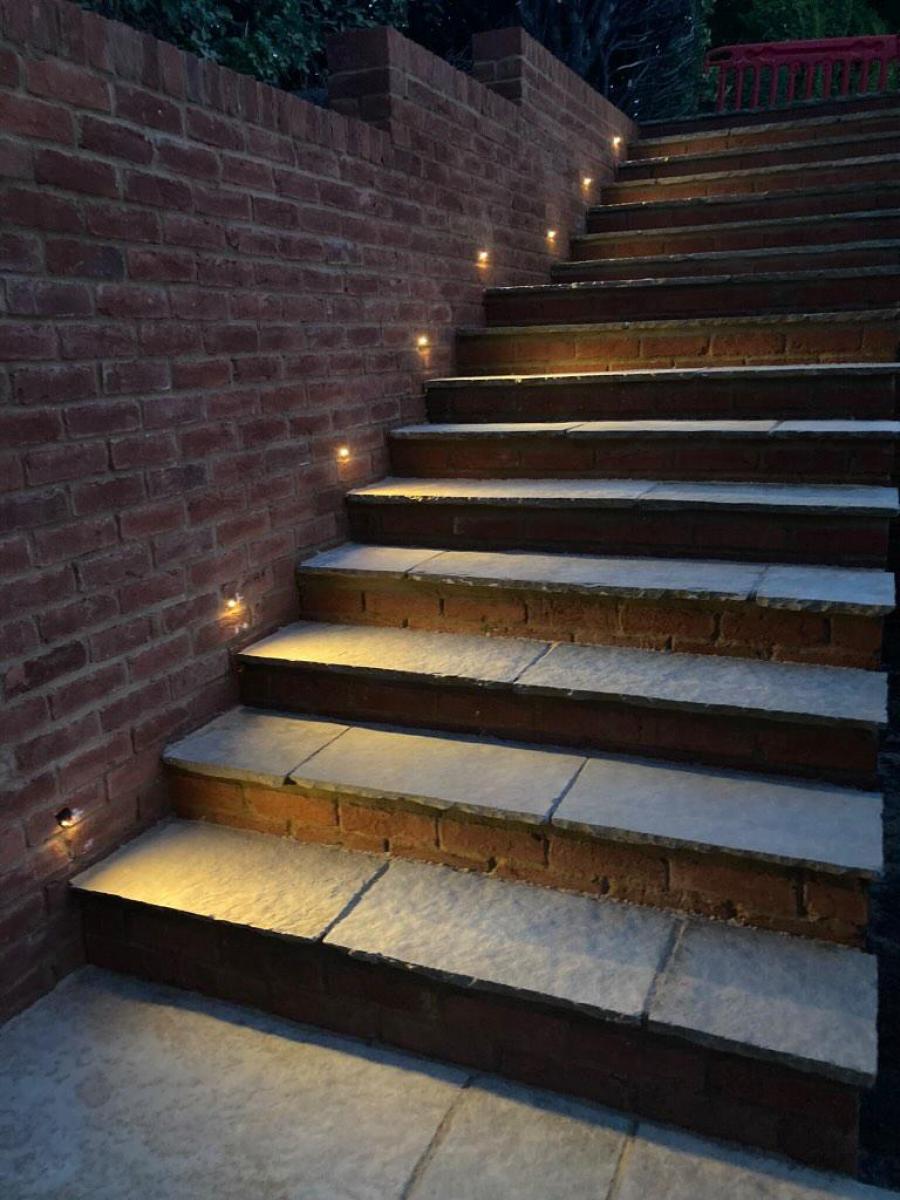

Micro eyelid on stairs
Customer-Submitted Photos

Size comparision to a credit card


Specification Sheet

Image Pack
SketchUp Model
TM66 Circular Economy Assessment
TM66 Circular Economy Assessment
Category | Points Scored | Max Points | Assessment |
---|---|---|---|
Product Design | 97.0 | 134.0 | 2.9 |
Manufacturing | 27.0 | 46.5 | 2.3 |
Materials | 10.0 | 24.0 | 1.7 |
Ecosystem | 36.0 | 43.0 | 3.3 |
Overall | 170.0 | 247.5 | 2.6 |
Score Range Key | |
---|---|
0 to 0.5 | Very poor circular economy performance |
0.5 to 1.5 | Some circular economy functionality |
1.5 to 2.5 | Definite/substantial progress to circularity |
2.5 to 4.0 | Excellent circularity |
